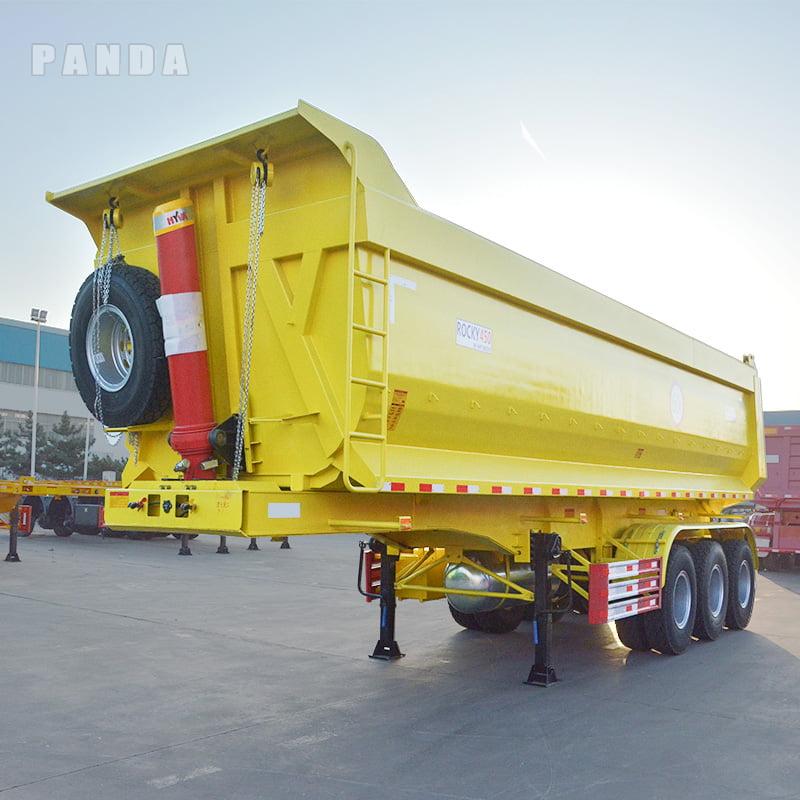

Aggregate Tipping Trailers For Sale
Model: 3 Axle 60 ton
Price Range: USD 21,000-45,000
Delivery date: 7-25 days
Application: transport Coal, ore, building materials
Tilt Angle: 45??
Hydraulic system: HYVA cylinder
Out of stock
Description
Introduction
The Aggregate Tipping Trailer – the ultimate hauling solution for the construction, mining, and quarrying industries. These robust trailers are engineered for efficient transportation of bulk materials like crushed stone, gravel, sand, and aggregates.
With high-capacity hopper bodies optimized for easy loading/unloading and sturdy construction to withstand tough conditions, these trailers ensure reliable performance. Their versatile design makes them invaluable across various applications – transporting raw materials for concrete, road building, and mining/quarry operations.
Tipper semi trailer video
Features and Benefits
- High Payload Capacity: Aggregate Tipping Trailers carry substantial volumes of aggregate materials, ranging from 20 to 60 tons or more, enhancing operational efficiency.
- Robust Construction: With heavy-duty steel frames and reinforced beds, these trailers withstand abrasive materials and immense weight, ensuring durability.
- Efficient Unloading: Hydraulic tipping systems allow precise unloading at desired locations, reducing the need for extra labor or equipment.
- Tailored Body Designs: Specialized features like smooth interiors minimize material buildup for efficient unloading.
- Customizable Configurations: Various axle arrangements and suspension systems suit specific operational needs and regulatory requirements.
Aggregate tipping trailer specification
- Manufacturer: Panda Mech
- Semi Tipper Capacity: 60 Ton
- Overall Dimensions (mm): 10500 x 2500 x 3500
- Body Dimensions (mm): 9775 x 2400 x 1380
- Semi Tipper Length: 32.1 ft
- Semi Tipper Height: 11 ft
- Semi Tipper Width: 8 ft
- Chassis: Heavy-duty and extra durability designed I beam
- Axle: 2, 3 Axles
- Hydraulic System: HYVA hydraulic cylinder
- Cylinder: 175, 191, 202, 214 / 4TG, 5TG
- Suspension: Mechanical suspension / Spring suspension
- Kingpin: JOST 2″ or 3.5″ detachable type
- Landing Gear: JOST 28T
- Braking System: ABS or EBS (optional)
- Material: 5mm or 6mm high strength steel, steel body
- Tire: 12R 22.5 315/80 R22.5
- Spare Tire Carrier: One set of the spare tire including a carrier
- Accessories: One standard toolbox, one rocker handle, one shaft wrench
- Brake Chambers: T30/30
- Parts: Electric system, brake system, axle, tire, suspension, latch, kit
About Transportation
For transporting our tipper trailer via sea freight, we take several key precautions.
- Given the high moisture levels encountered during marine transport, we proactively spray a protective layer of wax over the trailer’s painted surfaces prior to shipment. This wax coating acts as a barrier, safeguarding the paint job which is crucial for preventing rust and corrosion of the metal components. The trailer’s painted areas are its first line of defense against the elements, so maintaining that protective paint layer is paramount.
- To eliminate any risk of scratches, dents, or other damage during transit, we meticulously secure the entire trailer within a shipping container using heavy-duty straps, braces, and cushioning materials. The trailer is essentially encapsulated within the container, rendered completely immobile to ensure it arrives unscathed from any jostling that may occur during the ocean voyage.
- By combining the wax coating to protect the paint with rigid, locked-down containerization of the trailer itself, we minimize the potential for any deterioration before it reaches its destination port.
About Panda
Panda Mechanical is a renowned manufacturer with over two decades of expertise in semi trailer design and production. Our star products, cement bulker and tipper trailers, have been transported to more than 100 countries worldwide, a testament to their exceptional quality and performance. We collaborate with several world-famous spare parts manufacturers, ensuring that every component meets the highest standards of durability and reliability.
At Panda Mechanical, we take pride in our professional team that provides comprehensive support throughout the entire product lifecycle, from pre-sale consultations to round-the-clock after-sales services. Our commitment to excellence is reflected in our unwavering dedication to understanding our clients’ unique requirements and delivering tailored solutions that exceed their expectations.
With a relentless pursuit of innovation and a customer-centric approach, Panda Mechanical continues to lead the way in the semi trailer industry, setting new benchmarks with each product we create.
60 Ton aggregate trailers for sale
Panda Mech is a 60 ton aggregate tipping trailer manufacturer from China. We supply aggregate tipping trailer for sale. PANDA MECH manufacturers have been successful in Southeast Asia, the Middle East, Africa and South America, such as the Philippines, Tanzania, Nigeria, etc…
Get Latest Price and Detail
