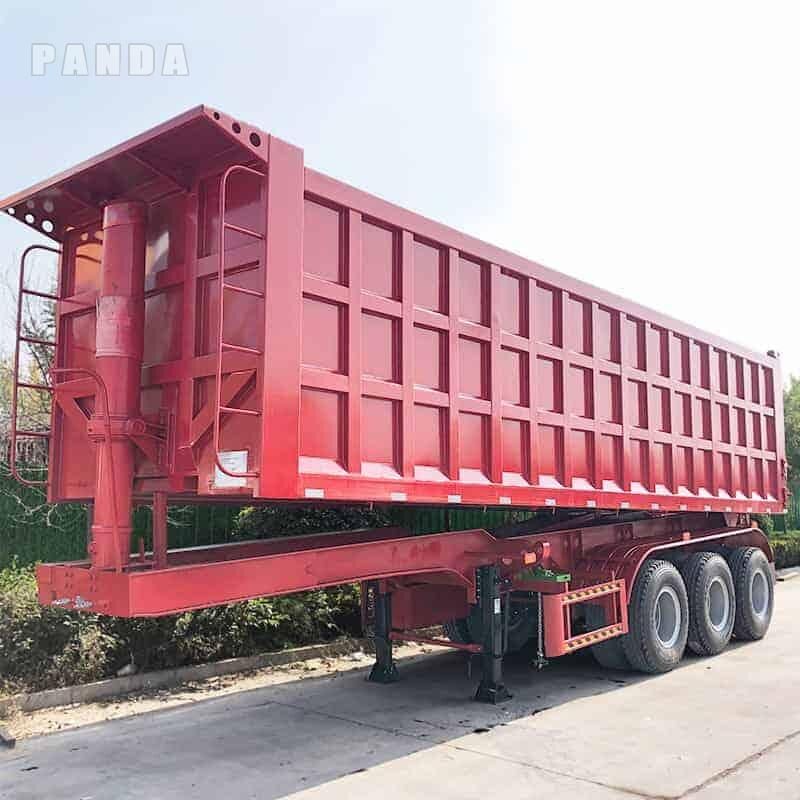

50 Ton Rear Dump Semi Trailer
Model: 3 Axle 50 ton
Price Range: USD 22,000-36,000
Delivery date: 7-25 days
Application: transport Coal, ore, building materials
Tilt Angle: 45??
Hydraulic system: HYVA cylinder
Out of stock
Description
Introduction
Engineered for heavy-duty hauling, the 50 Ton Rear Dump Tipper Trailer delivers unparalleled performance and versatility across construction, mining, quarrying, and large earthmoving projects requiring reliable material transportation.
In construction, it plays a crucial role transporting vast quantities of aggregates, gravel, sand, and demolition debris, ensuring timely raw material delivery to keep projects on schedule. For mining and quarries, this trailer proves indispensable for hauling extracted minerals, ores, and processed aggregates. With its exceptional payload capacity, durability, and versatility, the 50 Ton Rear Dump Tipper is the go-to bulk transportation solution for businesses demanding uncompromising performance.
Tipper semi trailer video
Features and Benefits
- Compact Size: With a smaller footprint, allowing increased maneuverability for tight spaces and urban areas.
- Efficient Hydraulic Tipping: Equipped with hydraulic tipping mechanisms for smooth and controlled unloading of materials.
- Flexible Configurations: Available in various axle configurations like single, tandem, or tri-axle to meet specific hauling requirements.
- Durable Construction: Built with robust steel frames and reinforced trailer beds for longevity and reliable performance.
50 Ton rear dump semi trailer specification
- Manufacturer: Panda Mech
- Dimension (LxWxH): 10,500 x 2,500 x 3,230 mm
- Body Inside: 9,750 x 2,300 x 1,500 mm
- Dump Semi Trailer Volume: 50 Ton
- Floor: 6-8mm high strength steel
- Sidewall: 3-5mm high strength steel
- Beam: Domex 600 or equal steel, “I” section double web
- Cylinder: 6 set bottom cylinder
- Axle: 2/3/4 Axles
- Tire: 12.00R20 / 13R22.5 or customized
- Dump Semi Trailer Suspension: Mechanical / Air / Bogie (optional)
- Leg: JOST exchangeable type
- Brake: Dual air brake system, WABCO chamber and valve
- Electrical System: 12v/24v, 7 line cable, LED light
- Parts: Electric system, brake system, axle, tire, suspension, latch, kit
About Transportation
For transporting our tipper trailer via sea freight, we take several key precautions.
1. Given the high moisture levels encountered during marine transport, we proactively spray a protective layer of wax over the trailer’s painted surfaces prior to shipment. This wax coating acts as a barrier, safeguarding the paint job which is crucial for preventing rust and corrosion of the metal components. The trailer’s painted areas are its first line of defense against the elements, so maintaining that protective paint layer is paramount.
2. To eliminate any risk of scratches, dents, or other damage during transit, we meticulously secure the entire trailer within a shipping container using heavy-duty straps, braces, and cushioning materials. The trailer is essentially encapsulated within the container, rendered completely immobile to ensure it arrives unscathed from any jostling that may occur during the ocean voyage.
3. By combining the wax coating to protect the paint with rigid, locked-down containerization of the trailer itself, we minimize the potential for any deterioration before it reaches its destination port.
About Panda
Panda Mechanical is a renowned manufacturer with over two decades of expertise in semi trailer design and production. Our star products, cement bulker and tipper trailers, have been transported to more than 100 countries worldwide, a testament to their exceptional quality and performance. We collaborate with several world-famous spare parts manufacturers, ensuring that every component meets the highest standards of durability and reliability.
At Panda Mechanical, we take pride in our professional team that provides comprehensive support throughout the entire product lifecycle, from pre-sale consultations to round-the-clock after-sales services. With a relentless pursuit of innovation and a customer-centric approach, Panda Mechanical continues to lead the way in the semi trailer industry, setting new benchmarks with each product we create.
