45 CBM 55 Ton Cement Bulker

A Panda Mech cement bulker is constructed with a robust metal cylinder and cone-shaped hoppers at the bottom, designed to facilitate the loading and unloading of materials. It employs a system of pressurized air to efficiently transport materials through pipes in and out of the tank, ensuring a clean and effective handling of bulk products. The system is composed of the tank structure and discharging units that regulate the flow of materials under pressure, enhancing the operational efficiency and cleanliness of the material transfer process.

Images

Specifications

Brand	PANDA Mech 55t
Volume	45 cbm, 45 cubic meter
Capacity	55 ton
Engine	WeiCai Deutz diesel moto
Manhole Cover	2 to 4 sets 500mm diameter
Cement bulk trailer dimension	11000*2500*3600 mm
Tank Material	5mm or 6mm high strength steel / Stainless steel
Structure	Q345 high straight steel
Landing Gear	JOST 28T
Suspension	Mechanical or air suspension
Brake System	T30/30 chamber, WABCO emergency valve
Axle	3 axles, 1 to 4 sets, 13,16,20 ton axles, BPW or SAF
Tire	12R22.5, 385/65R22.5, 13R22.5, 12.00R24, 315/80R22.5
Bulk cement trailer parts	Pneumatic handrail, Famous brand engine, Axle, Tire, Water-proof wires, Semi-meter pipe, Valves, Release valve, Inner airbag, Landing gear, Water spray device, Side guard and toolbox, Manhole cover, blower

Feature:

1. Material: Constructed predominantly from high-strength steel, Panda Mech cement bulkers are engineered to provide exceptional durability and an extended service life. This robust material is well-suited to withstand the substantial stresses associated with transportation and the demands of pneumatic discharge.

2. Safety: Panda Mech cement bulkers are equipped with key safety enhancements to ensure operator safety. These include pressure gauges for monitoring internal pressure and safety cages at loading points, which are essential during the loading and unloading operations.

3. Hopper and Internal Compartments: Panda Mech cement bulkers feature internal compartments that facilitate the management of different materials or quantities. These compartments are instrumental in the controlled discharge of materials, aiding in both loading and unloading processes.

4. Specialized Configurations: Panda Mech offers cement bulkers in a variety of specialized configurations to meet diverse industry requirements. These configurations include food-grade variants for transporting consumable materials and models with different cubic capacities tailored to specific logistical demands.

5. Optional Features: Some models of Panda Mech cement bulkers are equipped with additional options such as folding handrails, hose tubes, and various line systems, designed to meet specific operational requirements and enhance functionality.

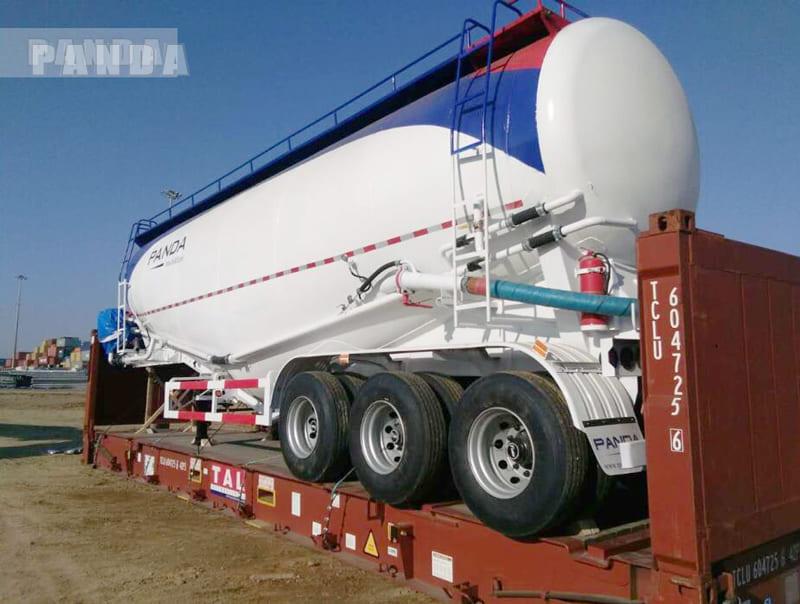

Transport

The predominant mode of transporting our pneumatic dry bulk trailers is via bulk cargo, to ensure maximum protection against the corrosive effects of seawater during transit, each trailer is meticulously coated with wax. Additionally, we safeguard the air compressor with a tarpaulin. Should any concerns arise post-delivery, our commitment is to address and resolve them swiftly and efficiently.
